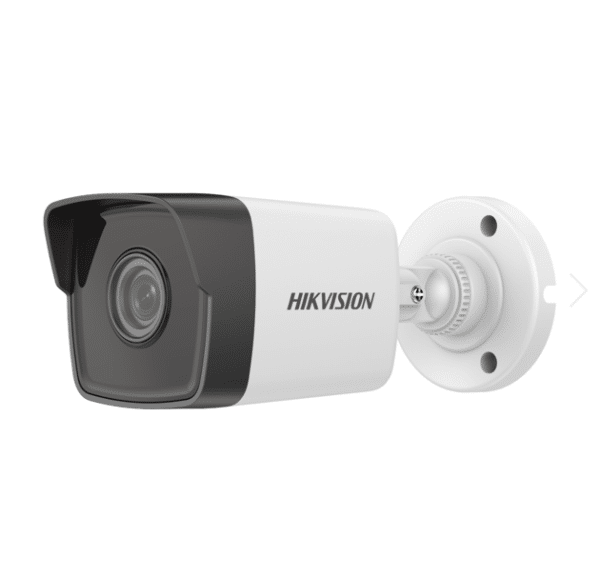

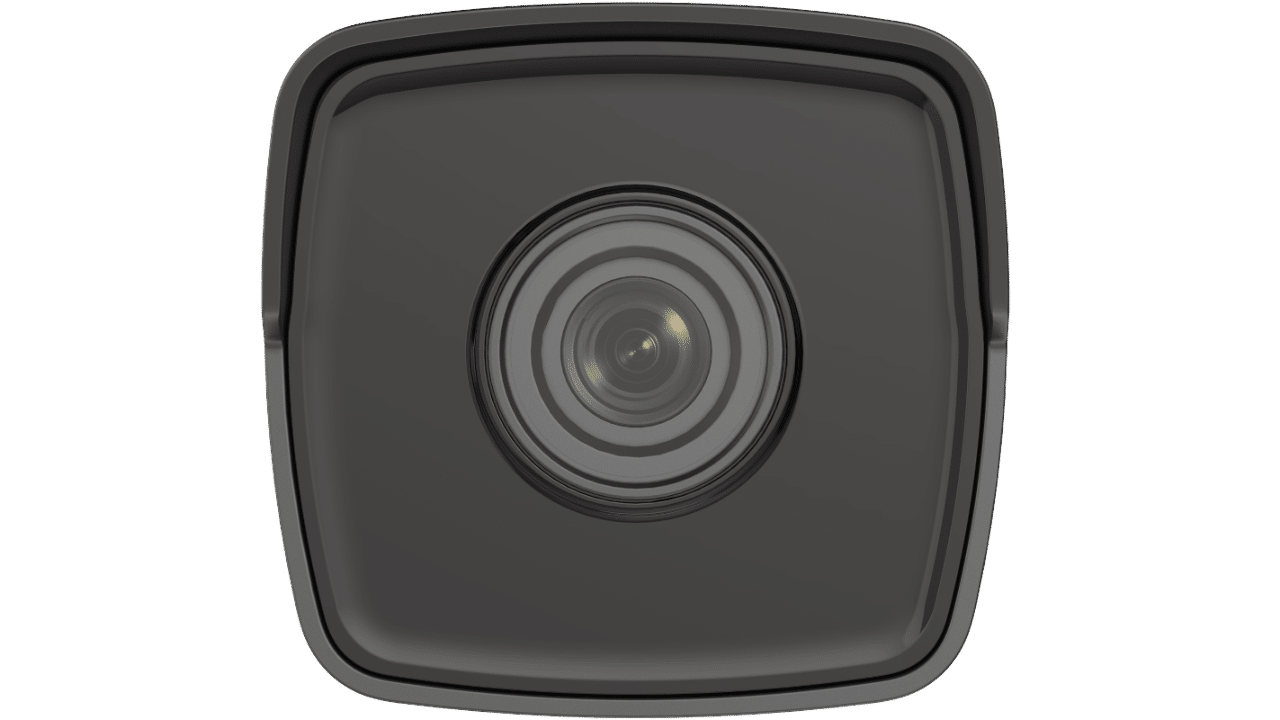

Caméra de surveillance HIKVISION IP POE 2MP DS-2CD1023G0E-I

Caméra de surveillance IP POE étanche de 2 Mégapixels (Full HD – 1080P ) HIKVISION DS-2CD1023G0E-I
Caméra de surveillance IP POE étanche de 2 Mégapixels (Full HD – 1080P ) DS-2CD1023G0E-I
La caméra Bullet offre une excellente solution extérieure pour sécurisation un bâtiment ou une habitation tout en maitrisant son budget.
Equipée de la technologie EXIR 2.0 ( Advanced infrared technology with long IR range), elle permet d’avoir une bonne visibilité nocturne, et une image claire.
Compatible avec la technologie de compression H.265+

Camera

Image Sensor
1/2.7″ Progressive Scan CMOS

Max. Resolution
2560 × 1920

Min. Illumination
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed
1/3 s to 1/100,000 s

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, tilt: 0° to180°, rotate: 0° to 360°

Lens

Lens Type
Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°

4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°

Lens Mount
M12

Iris Type
Fixed

Aperture
F2.0

Illuminator

Supplement Light Type
IR

Supplement Light Range
Up to 30 m

IR Wavelength
850 nm

Video

Main Stream
50 Hz: 20 fps (2560 × 1920)

25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (2560 × 1920)

30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 16 Mbps

H.264 Type
Baseline Profile/Main Profile/High Profile

H.265 Type
Main profile

Region Of Interest (ROI)
1 fixed region for main stream

Audio

Audio Compression
-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate-
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Audio Sampling Rate
-UF: 8 kHz/16 kHz

Environment Noise Filtering
-UF: Yes

Network

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,
UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View
Up to 6 channels

API
Open Network Video Interface, ISAPI

User/Host
Up to 32 users. 3 levels: administrator, operator and user

3 user levels: administrator, operator, and user

Clienti
VMS-4200, Hik-Connect

Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+


Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch
Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)
120 dB

Image Enhancement
BLC, 3D DNR

Interface

Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage
-UF: Built-in memory card slot, support microSD card, up to 256 GB

Built-In Microphone
-UF: Yes

Reset Key
-UF: Yes

Event

Basic Event
Motion detection, video tampering, exception

Linkage
Upload to FTP, notify surveillance center, send email

-UF also supports: upload to memory card, trigger recording, trigger capture

General

Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Dimension
177.6 mm × 67.8 mm ×66.2 mm (7″ × 2.7″ × 2.6″)

Package Dimension
216 mm × 121 mm × 118 mm (8.5″ × 4.8″ × 4.6″)

Approx. 270 g (0.6 lb.)

With Package Weight
Approx. 481 g (1.1 lb.)

Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language
English, Ukrainian

General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

EMC
FCC SDoC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC VoC: ICES-003: Issue 7;

KC: KN 32: 2015, KN 35: 2015

Safety
UL: UL 62368-1;

CB: IEC 62368-1:2014+A11;

CE-LVD: EN 62368-1:2014/A11:2017;

BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

Environment
CE-RoHS: 2011/65/EU;

WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013
